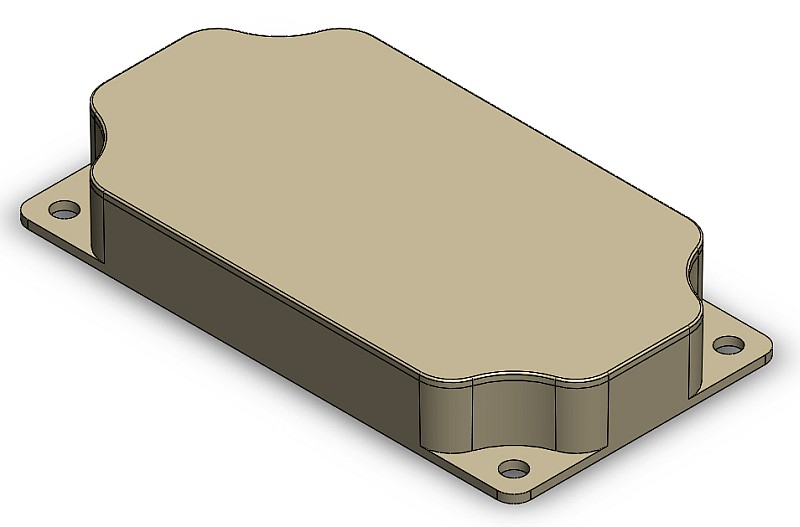

The Rugged Solar Energy Harvester is a portable solar battery charger capable of charging a wide array of typical rechargeable batteries. The charger features advanced digital control, which enables high efficiency, maximum power point tracking (MPPT) of the solar panel, and value-added features such a regulated emergency voltage output when no battery is connected. The charger is able to operate from any solar panel configuration with Vopen circuit &l; 60V. The charger can be operated as a portable device or chassis mounted, and the only wiring needed is the connection to the solar panel or DC source using a polarized SAE plug. The advanced charge controller minimizes charge time by utilizing proprietary digital control algorithms and power conversion technology, while monitoring critical parameters to ensure safety and reliability. The implementation of high-speed MPPT delivers maximum charging current, even in low light or poor weather conditions. The simple LED interface informs the user of the charging status and if there are any faults. The LED indicators are disabled by default for reduced light signature, and are enabled using the rugged chassis mount buttons.

Supports 12V, 24V, and custom batteries with Li-Ion, LiFePO4, VRLA, Gel Lead Acid, and Flooded Lead Acid chemistry.

MSRP: $7,495

AP13061: High Efficiency P3-124W Foldable Solar Panel Array

Foldable high efficiency 124 watt solar blanket. For vehicle silent watch applications the recommended kit is qty 4 of the AP13061.

MSRP: $1,725
