MSRP: $539.00

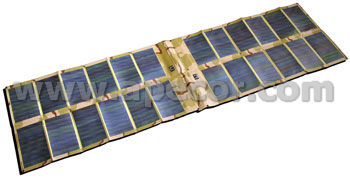

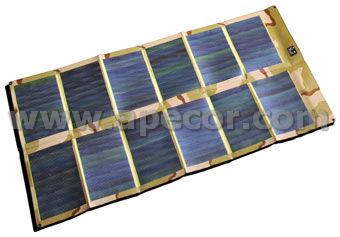

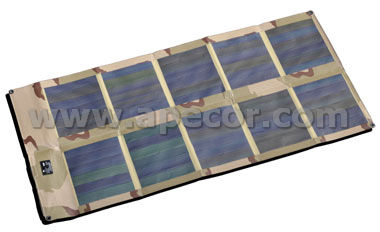

Premium high efficiency 40W foldable solar panel based on the same platform as the AP13043. It is the same size and weight, but features 30% higher power.

MSRP: $959.00

Premium high efficiency 80W foldable solar panel based on the same platform as the AP13044. It is the same size and weight, but features 30% higher power.

MSRP: $1,175.00

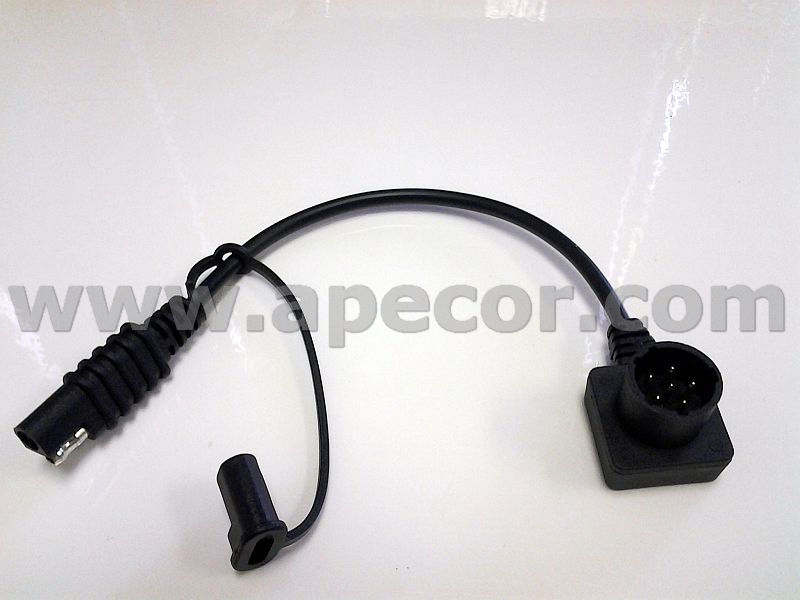

Scavenger cable used to power the X-90 Solar Charger from any XX90 format primary or rechargeable battery. Allows the user to capture unused energy from discarded or mostly discharged batteries. Output voltage is 20V - 33V. Compatible with BA-5590, BB-2590, BB-390, BB-590. Could also be used to directly power the BA-5590 28V Emulator Cable.
DO NOT CONNECT THE 28V XX90 SCAVENGER CABLE TO THE 12V AUXILIARY POWER BUS.

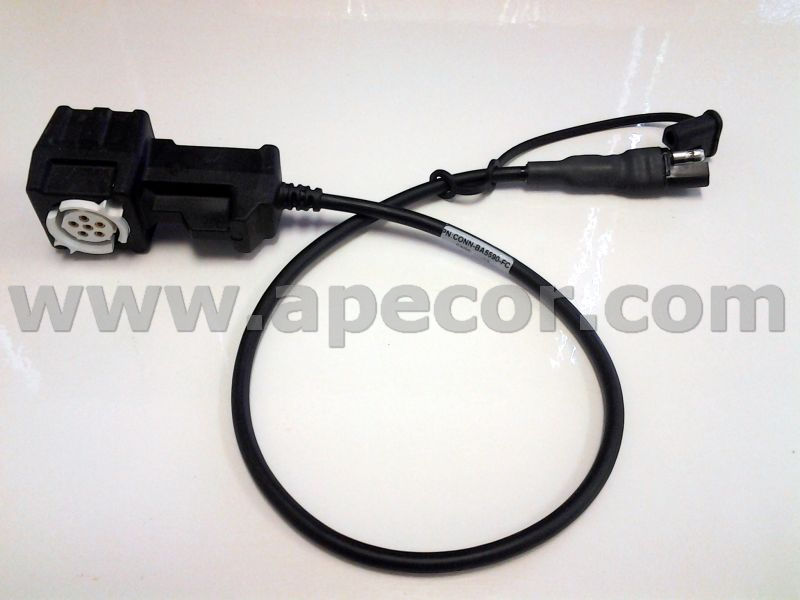

Allows for operation of devices which use the BA-5590 in 28V mode, such as the PRC-117G. Must be used with AP13003 28V Regulator. Pin 1 is Ground, Pin 5 is +28V. Could also be used directly from the output of the XX90 Scavenger Cable if necessary.

Fully ruggedized IP68 70W continuous DC-DC converter which can be used to power 28V devices from the 12V Auxiliary output of the X-90 V3 AUX. Can accept input voltage from 10V to 25V. The DC-DC converter features reverse connection protection and active short circuit protection. The input and output cables are standard SAE connectors, allowing the units to be connected in series with the X-90 V3 AUX cabling. The converter also features Solar I-V curve simulation, allowing the X-90 V3 to harvest energy from 12V sources using the DC-DC converter in series with the X-90 Input. The SAE power connectors feature a retained moisture cap.
DO NOT CONNECT THE 28V OUTPUT TO THE 12V AUXILIARY BUS.
Go to Product Page

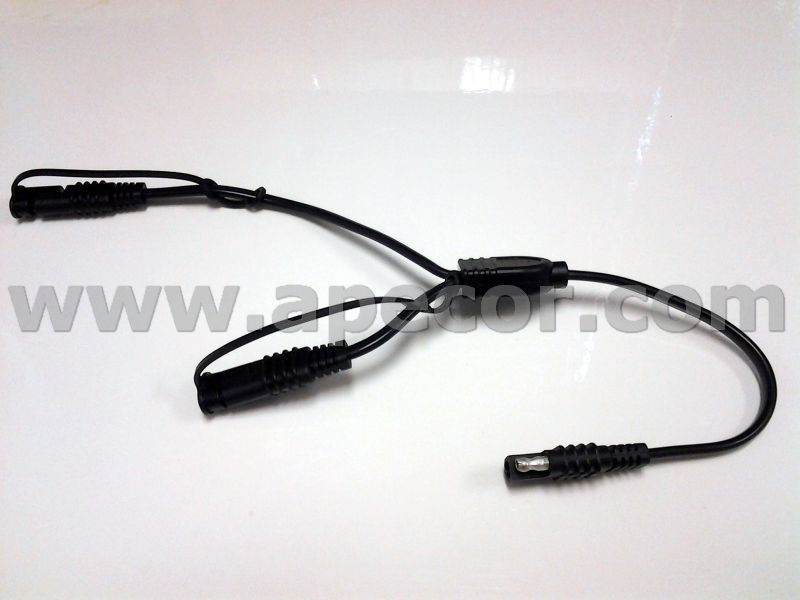

Rugged Y-cable used to distribute the 12V auxiliary power bus to numerous devices. The cable features retained moisture caps. The 16AWG wire allows for the user to "daisy chain" multiple Y cables in series, creating a string of power with auxiliary power "taps" every 8 or 12 inches. The input cable and one of the output cables is 6 inches, with the other output cable being 2 inches. This cable works with all AUX adapters. The Y-cable can also be used to parallel X-90 DC input sources, such as multiple foldable solar panels. The SAE connectors also feature a retained moisture cap.

Rugged 4-way auxiliary power splitter cable used to distribute the 12V auxiliary power bus to numerous devices. This cable allows for the powering of 4 separate devices off a single auxiliary power output. This cable works with all AUX adapters. 18AWG wire.

Allows for full charging speed of the X-90 V3 from common AC power. The unit features many electrical protections, and has been IP64 ruggedized for field use. The allowable input voltage is 80 - 264 VAC, 47 - 63 Hz. The AC/DC converter is available with many AC cable types, please specify at the time of ordering. The SAE output connector also features a retained moisture cap.

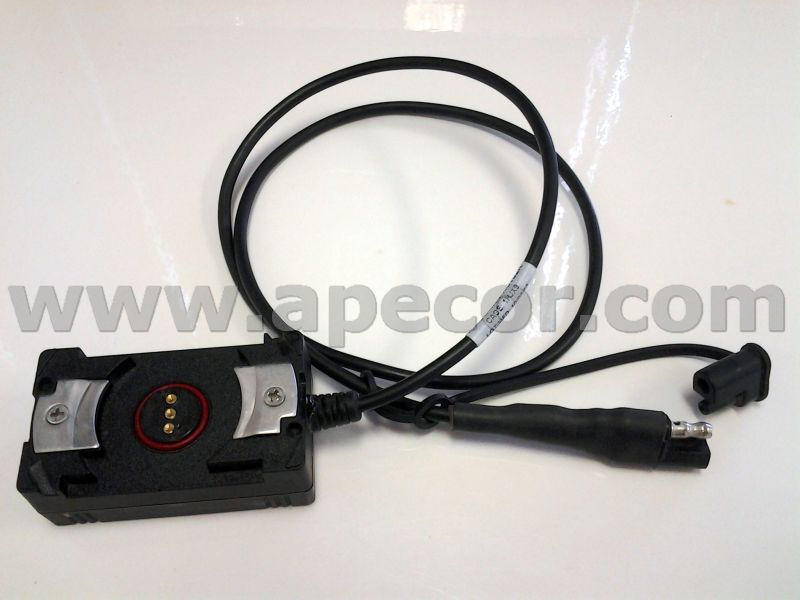

Adapter allows the operation of the PRC-148 or PRC-152 from the 12V auxiliary output of the X-90 V3 AUX. Using a BB-2590 battery to power the radio will allow for 4 times longer run time, while also allowing the X-90 V3 to quickly recharge the battery whenever possible. The SAE power input connector also features a retained moisture cap.

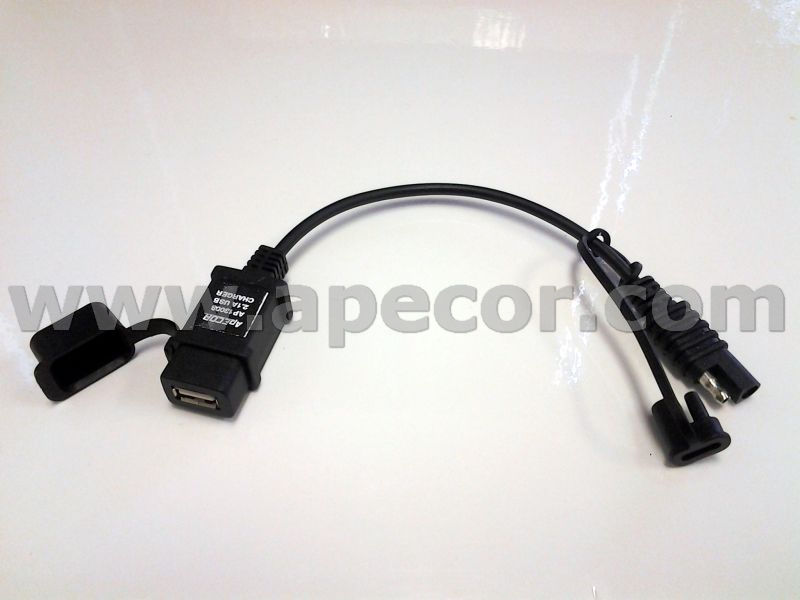

Rugged 5V 2.1A DC-DC converter accepts the 12V power from the X-90 V3 auxiliary power bus and allows the full rate charging of numerous USB power devices, including cell phones and tablet computers. The charger is compact and waterproof with a retained rubber cap for the USB socket. The SAE power input terminal also features a retained moisture cap. For some devices, to enable full rate charging, a separate charging cable AP130028 may be needed.
ONLY CONNECT THE USB CHARGER TO THE 12V AUXILIARY OUTPUT BUS OF THE X-90 V3 AUX, DO NOT CONNECT TO A 24V SOURCE OR SOLAR PANEL.

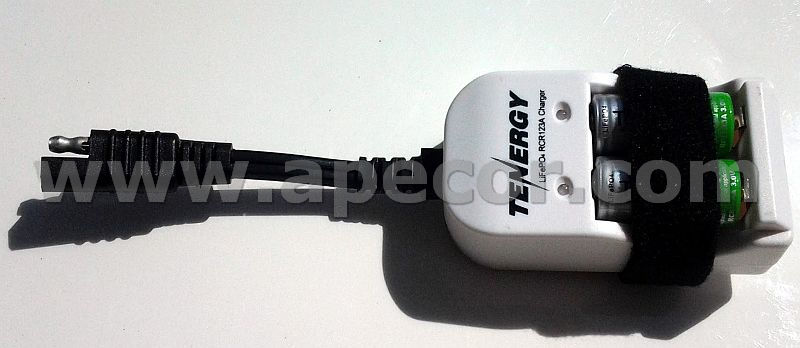

A ruggedized version of the Tenergy RCR123A LiFePO4 battery charger, allowing the fast and convenient recharging of batteries for tactical flashlights and equipment. The unit features an integrated 12V auxiliary cable, which can pull power from the auxiliary output bus of the X-90 V3 AUX. The charger is modified for resistance to corrosion, physical damage, and is water resistant. There is an integrated retaining strap to hold the batteries in place. The RCR123A 750mAh LiFePO4 batteries can be fully charged in 1.5 to 3 hours. Use only Tenergy brand RCR123A LiFePO4 batteries.
ONLY CONNECT THE INPUT CABLE TO THE 12V AUXILIARY OUTPUT BUS OF THE X-90 V3 AUX, DO NOT CONNECT TO A 24V SOURCE OR SOLAR PANEL.

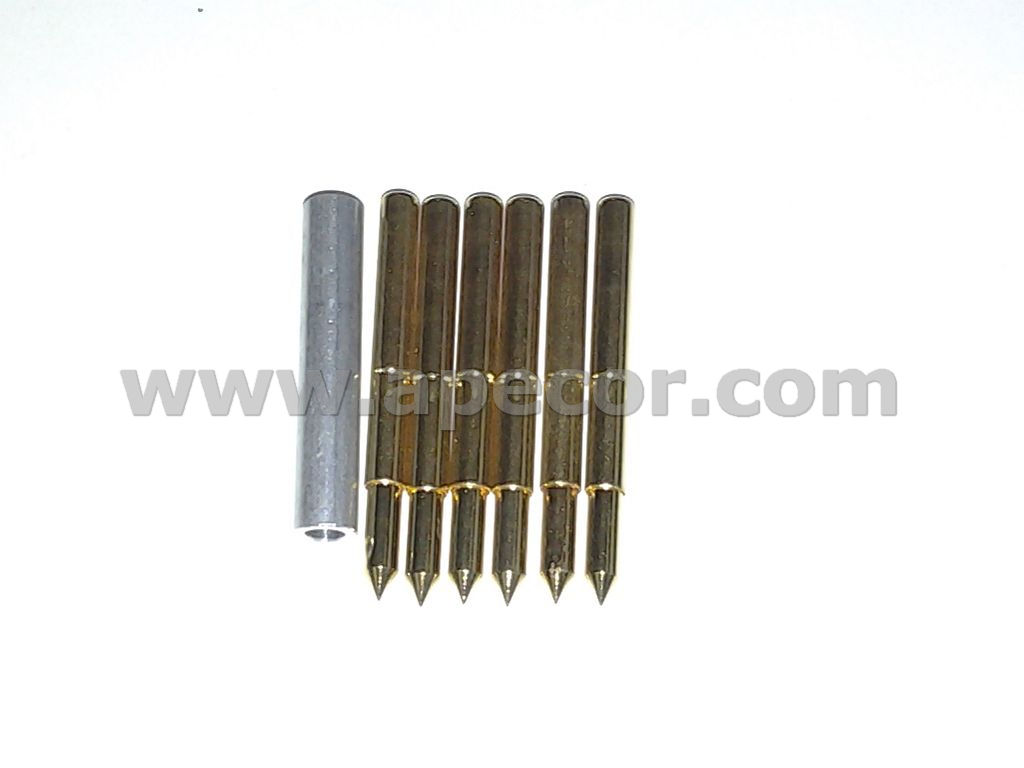

Kit includes 6 or 12 replacement gold spring pins for the X-90 V3 and V3 AUX. Also included is a tool for inserting the replacement pins. The kit is enclosed in a small plastic water resistant case. Damaged pins are removed with standard needle nose pliers. This allows the user to replace damaged spring pins without returning the X-90 to ApECOR. AP130010-X6 shown in picture.
Order Options: AP130010-X6 for 6 pin kit or AP130010-X12 for 12 pin kit

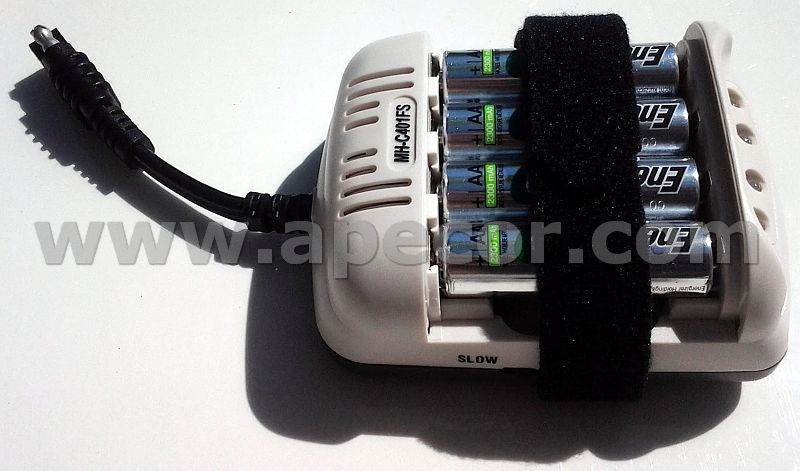

The Energizer premium Recharge AA/AAA NiMH 15 minute battery charger allows for fast and convenient recharging of AA and AAA batteries. The unit is powered from the barrel plug adapter AP13018, which can pull power from the auxiliary output bus of the X-90 V3 AUX. The charger is modified for resistance to corrosion, physical damage, and is water resistant. There is an integrated retaining strap to hold the batteries in place. The AA/AAA NiMH batteries can be charged in 15 - 30 minutes. Use only Energizer brand "Recharge" NiMH batteries.
ONLY CONNECT THE BARREL PLUG CABLE TO THE 12V AUXILIARY OUTPUT BUS OF THE X-90 V3 AUX, DO NOT CONNECT TO A 24V SOURCE OR SOLAR PANEL.

A ruggedized DC cable intended for installation into a vehicle to create quick access to the 24V power bus of the vehicle. This allows the user to easily connect to the 24V source to power the X-90 V3 while in the vehicle, and then quickly disconnect when dismounting. The cable is a reinforced coil cord, which will reduce the footprint of the cable when not in use. The SAE output connector features a retained moisture cap. The power input is a ring terminal, which can easily be spliced with user preferred connections to the vehicle power bus. The cable also features an inline fuse.

Allows the X-90 V3 to accept power from numerous DC sources, such as 24V lead acid batteries and fuel cells. The large alligator clips can connect directly to the posts of a battery bank. When used with the Wide Input DC-DC regulator AP13003, it allows for harvesting of energy from lower voltage sources, such as a 12V lead acid battery. It can also be used on the auxiliary output of the X-90 V3 AUX to power devices with the unregulated 12V output.
NOTE: THE POLARITY OF THE CABLE CHANGED WHEN USED AS AN OUTPUT CABLE, REFER TO THE LABELING ON THE CABLE.
DO NOT USE THIS CABLE TO "CHARGE" A 12V BATTERY FROM THE AUXILIARY OUTPUT PORT ON THE X-90 V3 AUX.
Order Options: Input cable (SAE connector connects to X-90 Input): AP13014-IN or output cable (SAE connector connects to X-90 AUX Output): AP13014-OUT

Allows the X-90 V3 to accept power from numerous DC sources, such as 24V lead acid batteries and fuel cells. When used with the Wide Input DC-DC regulator AP13003, it allows for harvesting of energy from lower voltage sources, such as a 12V lead acid battery. It can also be used on the auxiliary output of the X-90 V3 AUX to power devices with the unregulated 12V output.
NOTE: THE POLARITY OF THE CABLE CHANGED WHEN USED AS AN OUTPUT CABLE, REFFER TO THE LABELING ON THE CABLE.
DO NOT USE THIS CABLE TO "CHARGE" A 12V BATTERY FROM THE AUXILIARY OUTPUT PORT ON THE X-90 V3 AUX.
Order Options: Input cable (SAE connector connects to X-90 Input): AP13015-IN or output cable (SAE connector connects to X-90 AUX Output): AP13015-OUT

A 6 foot long female CLA socket which can be used with numerous 12V "auto" adapters, such as those for electronics, computer power adapters, or power converters. The input SAE cable connects to the auxiliary power bus of the X-90 V3 AUX. The output voltage can reach as high as 16.5V, which is acceptable for most typical 12V auto adapters, but may damage certain adapters which are not tolerate of a slightly higher voltage than that of a 12V vehicle battery.
NEVER CONNECT DIRECTLY TO A SOLAR PANEL OR 24V SOURCE. ONLY CONNECT TO THE 12V AUXILIARY POWER BUS OF THE X-90 V3 AUX.

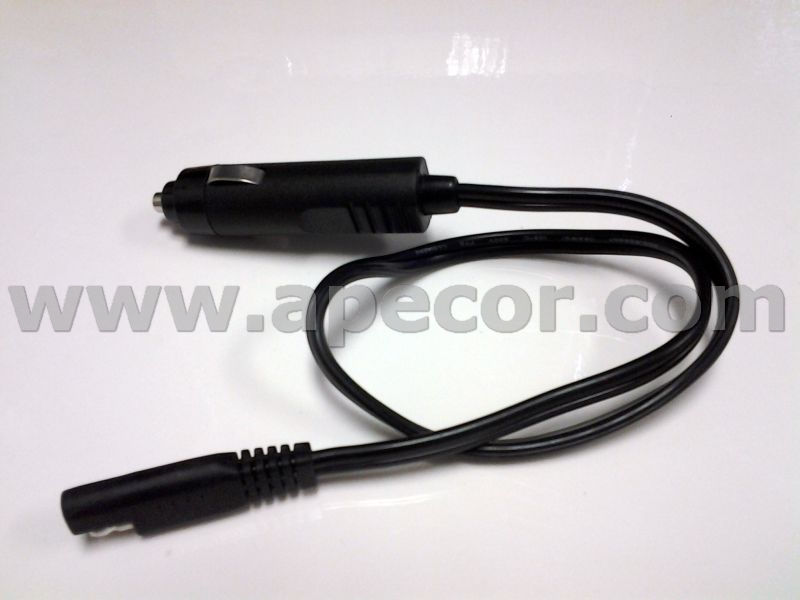

A male CLA plug which can be used to power the X-90 V3 when used with the 28V Boost Regulator AP13003. The male plug is connected to the CLA socket of a 12V battery bus vehicle, and the SAE cable output is connected to the 28V regulator, which can then power the X-90 V3.

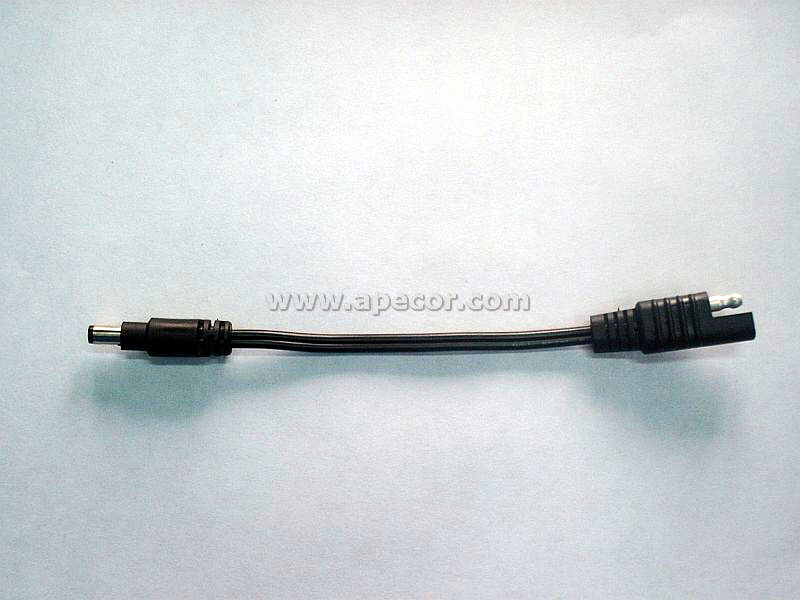

The cable can pull power from the auxiliary output bus of the X-90 V3 AUX to power small devices, such as the AP13012. The output terminal is a 1.4mm (or 2.5mm) ID X 5.5mm OD barrel plug on a 4" cable.
ONLY CONNECT THE BARREL PLUG CABLE TO THE 12V AUXILIARY OUTPUT BUS OF THE X-90 V3 AUX, DO NOT CONNECT TO A 24V SOURCE OR SOLAR PANEL.
Order Options: AP130018-1.4mm for 1.4mm barrel plug or AP130018-2.5mm for 2.5mm barrel plug

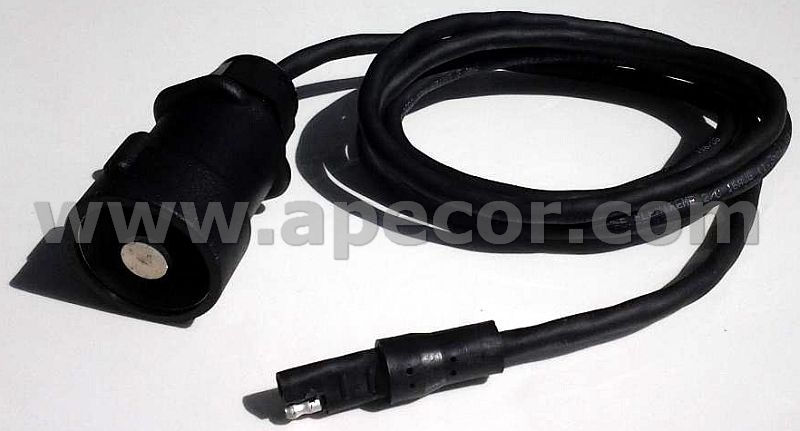

A ruggedized DC cable intended for quick connection to the 24V NATO power bus of the vehicle. This allows the user to easily connect to the 24V source to power the X-90 V3 while in the vehicle, and then quickly disconnect when dismounting. The cable has two versions of cables. Option A is a more portable version with thinner cable. Option B uses a more rugged SAE cable which is more durable but less compact. The power input is a 24V NATO connector, which can easily be spliced with user preferred connections to the vehicle power bus.

A ruggedized version of the MAHA Energy premium AA/AAA NiMH 100 minute battery charger, allowing the fast and convenient recharging of AA and AAA batteries. The unit is powered from an integrated auxiliary cable, which can pull power from the auxiliary output bus of the X-90 V3 AUX. The charger is modified for resistance to corrosion, physical damage, and is water resistant. There is an integrated retaining strap to hold the batteries in place. The AA/AAA NiMH batteries can be charged in approximately 100 minutes (depending on capacity). There is also a selectable slow charge speed of 5 hours, which allows the user to prioritize available power or reduce the strain on the batteries.
ONLY CONNECT THE INPUT CABLE TO THE 12V AUXILIARY OUTPUT BUS OF THE X-90 V3 AUX, DO NOT CONNECT TO A 24V SOURCE OR SOLAR PANEL.

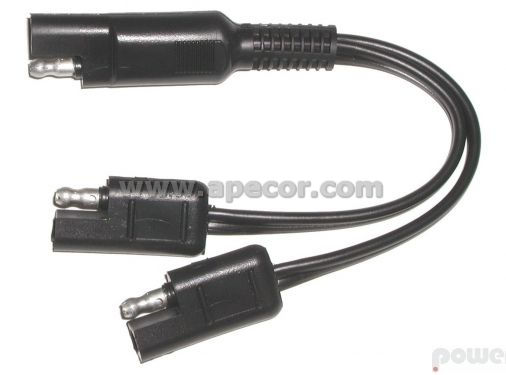

This cable can be used to split out the 12V AUX output of the X-90 V3 AUX to power multiple devices. The leads are 6" long. 18AWG wire.

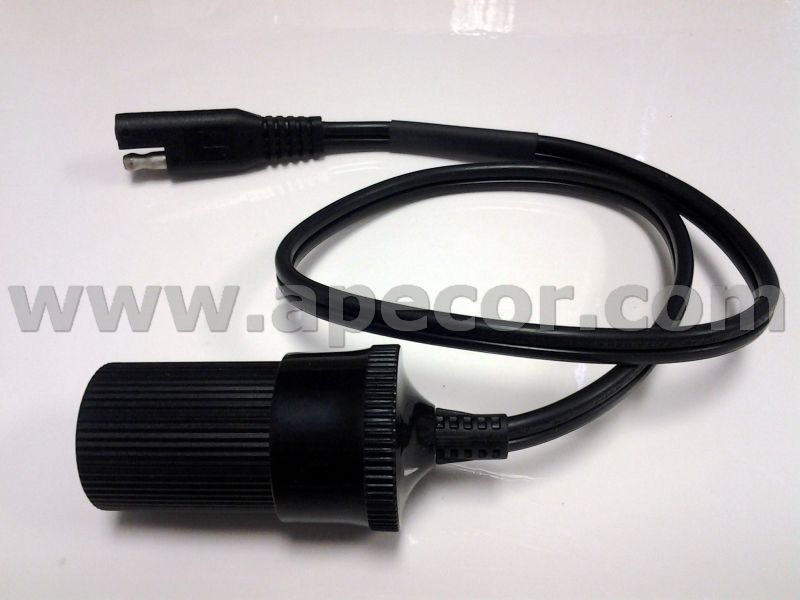

A short female CLA socket which can be used with numerous 12V "auto" adapters, such as those for electronics, computer power adapters, or power converters. Available in 3", 12", or 18" lengths. The input SAE cable connects to the auxiliary power bus of the X-90 V3 AUX. The output voltage can reach as high as 16.5V, which is acceptable for most typical 12V auto adapters, but may damage certain adapters which are not tolerate of a slightly higher voltage than that of a 12V vehicle battery.
NEVER CONNECT DIRECTLY TO A SOLAR PANEL OR 24V SOURCE. ONLY CONNECT TO THE 12V AUXILIARY POWER BUS OF THE X-90 V3 AUX.
Order Options: AP130024-3" for 3" length, AP130024-12" for 12" length, or AP130024-18" for 18" length

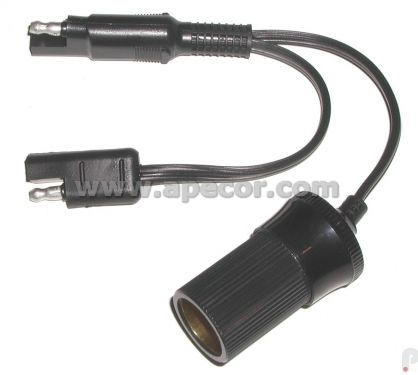

A short SAE Y cable with one female CLA socket and one SAE socket, which can "tap off" the AUX output with a CLA socket, and allow the SAE plug to still power other devices. The CLA socket can be used with numerous 12V "auto" adapters, such as those for electronics, computer power adapters, or power converters. The input SAE cable connects to the auxiliary power bus of the X-90 V3 AUX. The output voltage can reach as high as 16.5V, which is acceptable for most typical 12V auto adapters, but may damage certain adapters which are not tolerate of a slightly higher voltage than that of a 12V vehicle battery.
NEVER CONNECT DIRECTLY TO A SOLAR PANEL OR 24V SOURCE. ONLY CONNECT TO THE 12V AUXILIARY POWER BUS OF THE X-90 V3 AUX.

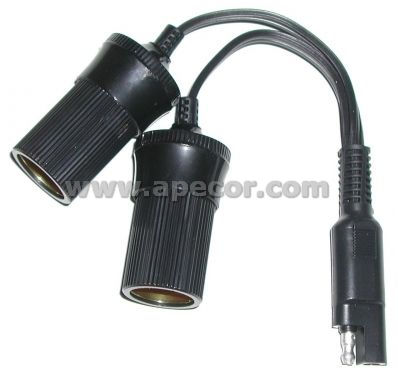

A short SAE Y cable with two female CLA sockets. The CLA socket can be used with numerous 12V "auto" adapters, such as those for electronics, computer power adapters, or power converters. The input SAE cable connects to the auxiliary power bus of the X-90 V3 AUX. The output voltage can reach as high as 16.5V, which is acceptable for most typical 12V auto adapters, but may damage certain adapters which are not tolerate of a slightly higher voltage than that of a 12V vehicle battery.
NEVER CONNECT DIRECTLY TO A SOLAR PANEL OR 24V SOURCE. ONLY CONNECT TO THE 12V AUXILIARY POWER BUS OF THE X-90 V3 AUX.

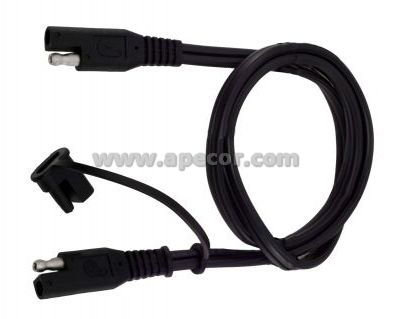

Heavy-duty 16 AWG SAE extension cable, with integrated moisture cap on one side.
Order Options: AP130027-24" for 24" length, AP130027-36" for 36" length, or AP130027-8� for 8� length

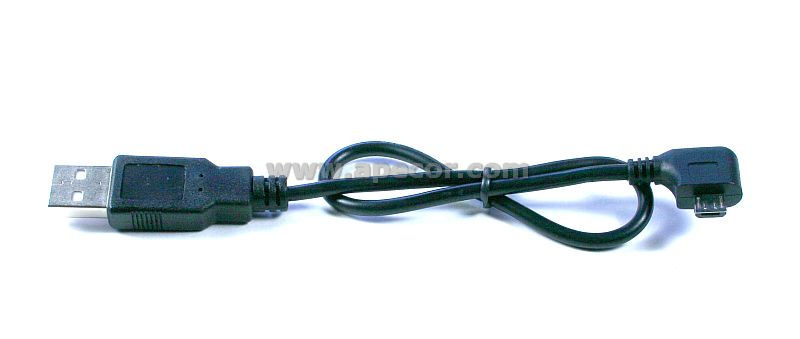

USB cables with internal shorting of data pins, which is necessary to enable full rate charging on some devices. This can be used with the 2.1A USB charger AP13008 if necessary. The cable is available in right angle-right or right angle-left (shown).
Order Options: AP130028-9" for 9" length, AP130028-12" for 12" length, or AP130028-18" for 18" length

A "smart adapter" for the X-90 V3, which allows the X-90 to charge the PRC-148/152 (MBITR) Li-Ion battery. This adapter connects directly to the bottom of the X-90 V3 in the place of a BB-XX90 battery. The smart adapter communicates with the X-90 V3 to indicate what the adapter type is, allowing the X-90 to properly charge the battery using Maximum Power Point Tracking.

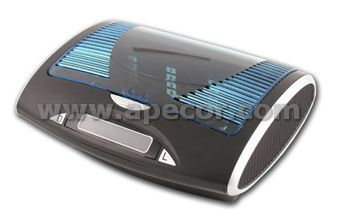

This accessory operates from the 12V auxiliary output of the X-90 V3 AUX. It can charge up to 4 batteries simultaneously and independantly (no need to match the same type of battery or state of charge). It can charge AAA/AA/C/D/9V batteries as well as an integrated 500mA USB charging port. The charger is based on a COTS device, which has been ruggedized for resistance to shock and moisture.

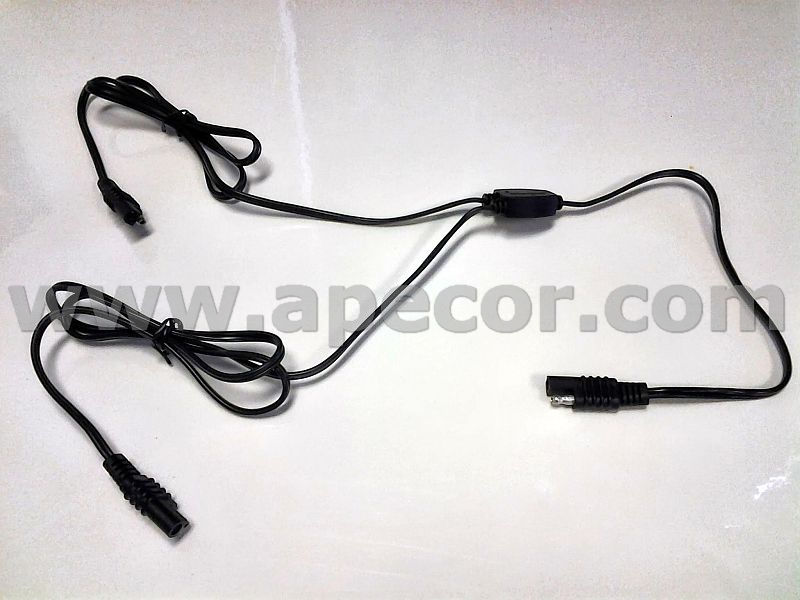

Rugged Y-cable used to distribute the 12V auxiliary power bus to numerous devices. The input cable is 12 inches, and both of the output cables are 36 inches. This cable works with all AUX adapters. The Y-cable can also be used to parallel X-90 DC input sources, such as multiple foldable solar panels.

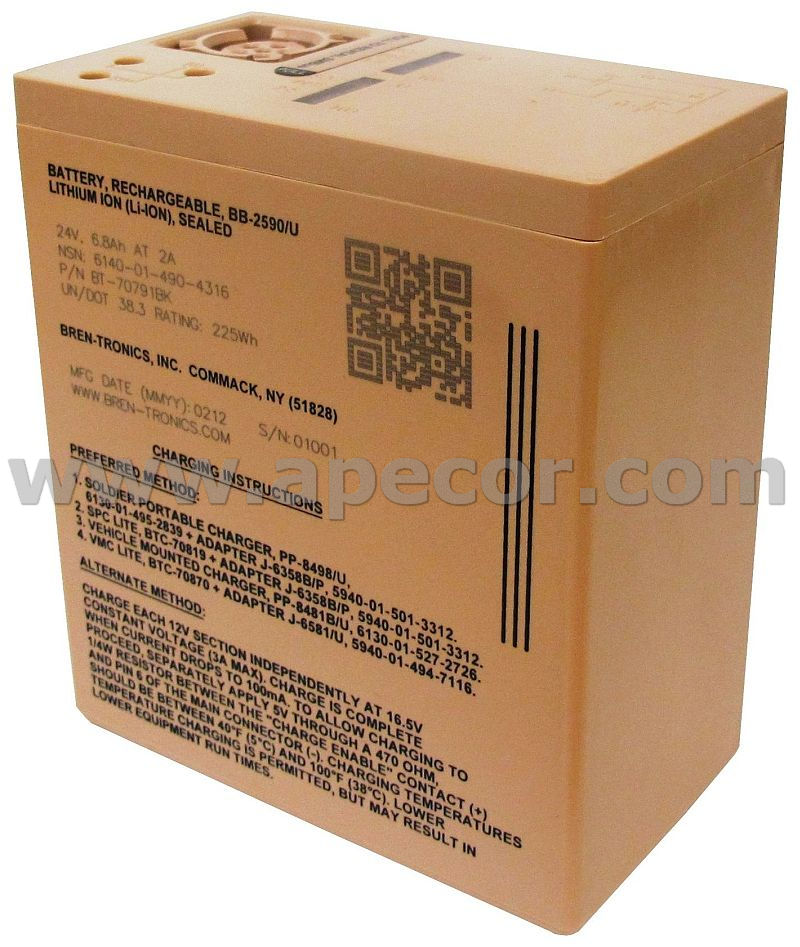

This is the standard 2590 battery with 216Wh capacity.

This is a high-capacity version of the 2590 battery with 250Wh capacity.

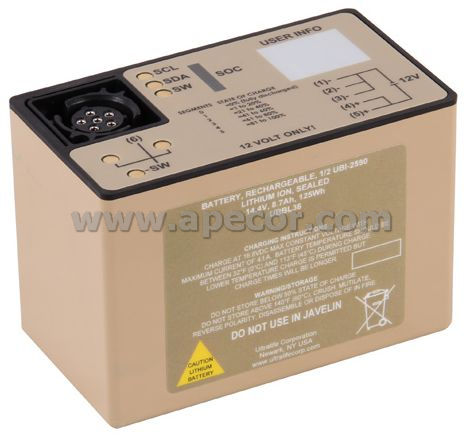

This is a 1/2 2590 battery with 150Wh capacity and approximately half in height compared to the standard 2590.
