The Active Controlled Cooling System (ACCS) is designed to cool electrical or mechanical systems that require a regulated temperature with coolant temperatures up to 105°C. Two versions are available for heat loads of 5kW (ACCS-5) or 10kW (ACCS-10). The rated amount of heat can be rejected over a temperature range of 60°C to 105°C. The coolant loop uses a finned radiator with powerful fans to reject the heat. The system can be controlled either through the easy to use front-panel interface or remotely through a USB computer interface. The cooling system utilizes full digital control to allow tight regulation of the coolant flow rate and temperature. The controller senses the flow rate, the outlet and inlet pressure, and the outlet and inlet temperature. The system is designed for laboratory and industrial environments which require a tightly regulated coolant. The system features easy to access fill and drain ports, pressure relief valves, and large outlet and inlet ports. Additionally there are several measures taken to protect the unit from excessive pressure and to prevent boiling.

  • Closed Loop Digital Controllers
  • High-Temperature capable
  • Internal 1kW Heating Element for faster warm-up of system to desired temperature
  • Simple front-panel user interface controls desired flow rate, temperature and option to enable the internal heater and it uses a Bright Vacuum Fluorescent Display
  • Remotely controllable through a computer interface using a USB cable
  • Internal Fluid Level Sensor
  • Protection from Over-Temperature and Over-Pressure
  • Fill Mode: Pump runs at low speed for easy system priming

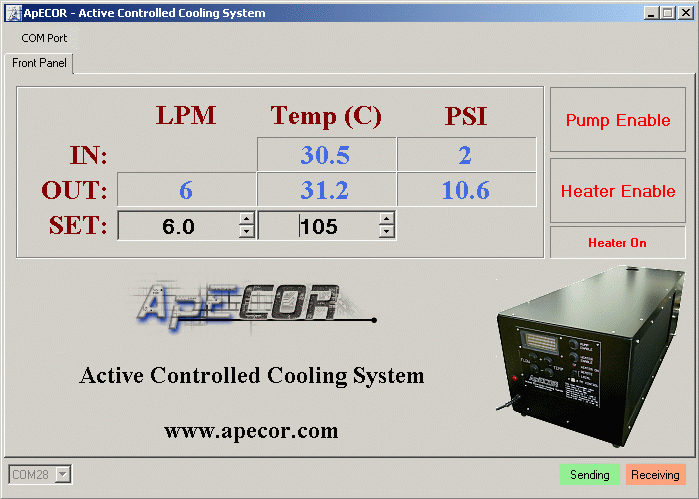

Software Interface
Software Interface

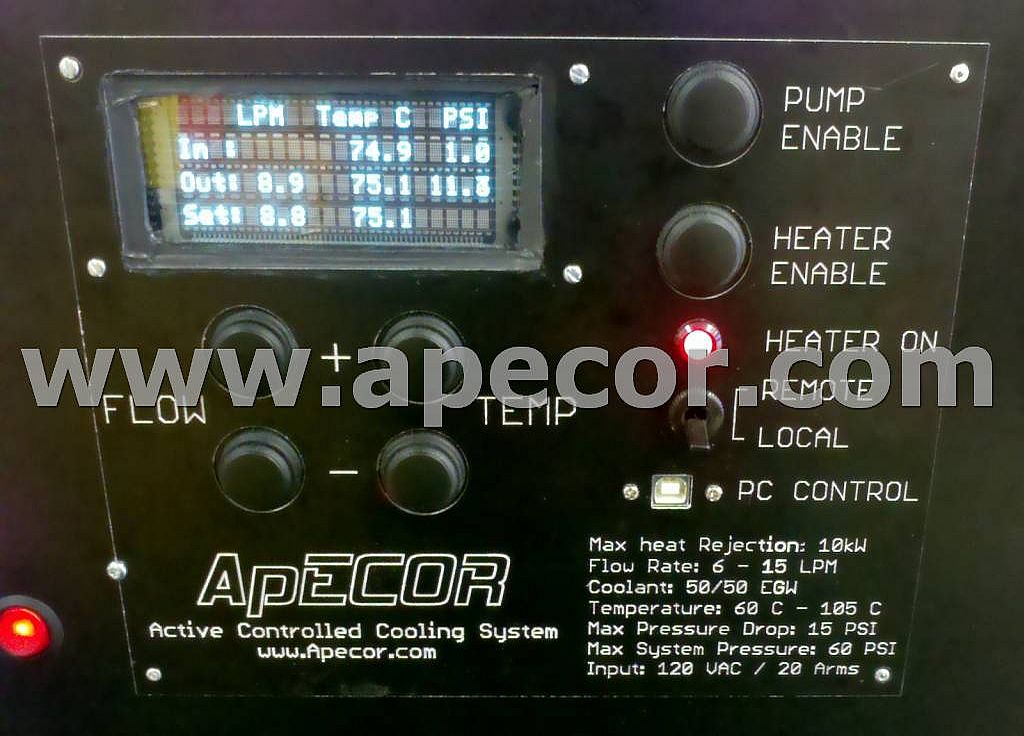

Cooler (Front Panel)
Cooler (Front Panel)

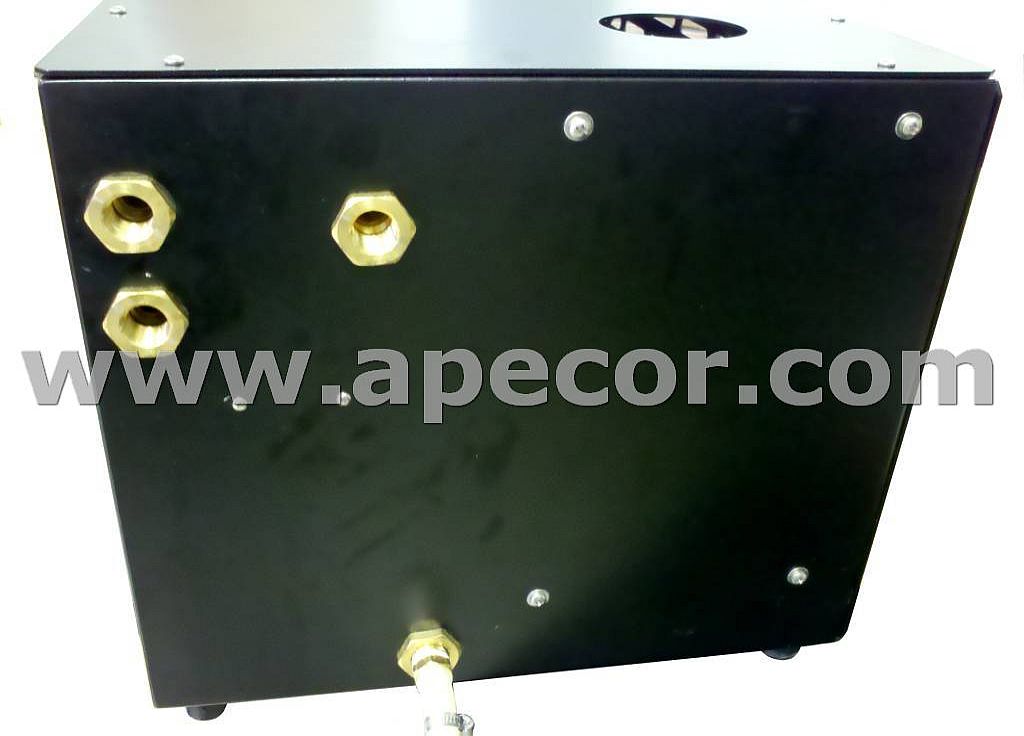

Cooler (back side)
Cooler (back side)

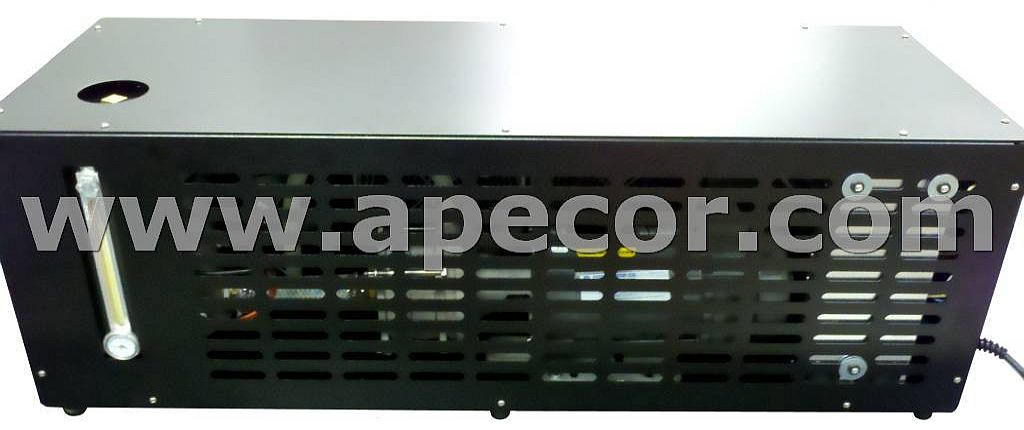

Cooler (left side)
Cooler (left side)

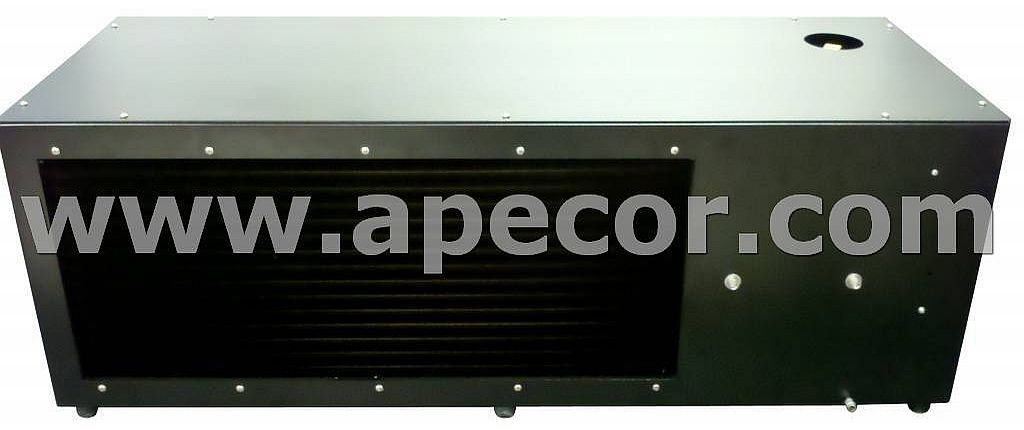

Cooler (right side)
Cooler (right side)

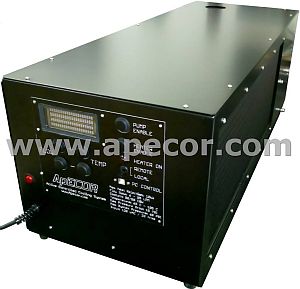

ApECOR Cooling System


Related Documents

Datasheet ACCS-5 / ACCS-10

User Manual ACCS-5 / ACCS-10


Max. Heat Rejection: 5kW / 10kW

Flow Rate: (6 - 15) LPM

Temperature: 60°C - 105°C

Coolant: 50/50 EGW

Max. Pressure Drop: 15 PSI

Max. System Pressure: 60 PSI

Internal Heater: 1kW

AC Input: 120V / 20A
