NEW: MA-4025 Solar
The MA-4025 Solar Charger is a portable solar battery charger capable of charging MA-4025 portable rechargeable batteries. The charger features advanced digital control, which enables automatic battery detection, maximum power point tracking (MPPT) of the solar panel, and value-added features such as a fixed DC input mode. The charger is able to operate from any solar panel configuration with Vopen circuit less than 60V. The charger directly plugs onto the top of the battery, and the only wiring needed is the connection to the solar panel or DC source using a polarized SAE plug. The implementation of high-speed MPPT delivers maximum charging current, even in low light or poor weather conditions. The simple LED interface informs the user when the batteries have been completely charged, and if there are any fault conditions.
Features:
- High-speed maximum power point tracking (MPPT) of solar panel
- 12V or 24V Solar Panel Input - No Minimum/Maximum Solar Panel Wattage
- Wide-range DC input capable
- No user input required
- Fully ruggedized design, meets or exceeds MIL-STD-810F standards
- Over temperature protection
- Fits directly on top of the MA-4025 battery
Typical Charging Time:
| Battery | Solar Panel (Watts) | Typical Full Charge Time (Hours) |
|---|---|---|
| MA-4025 | 62 | 1.25 |
Pictures:
MA-4025 Solar Top View

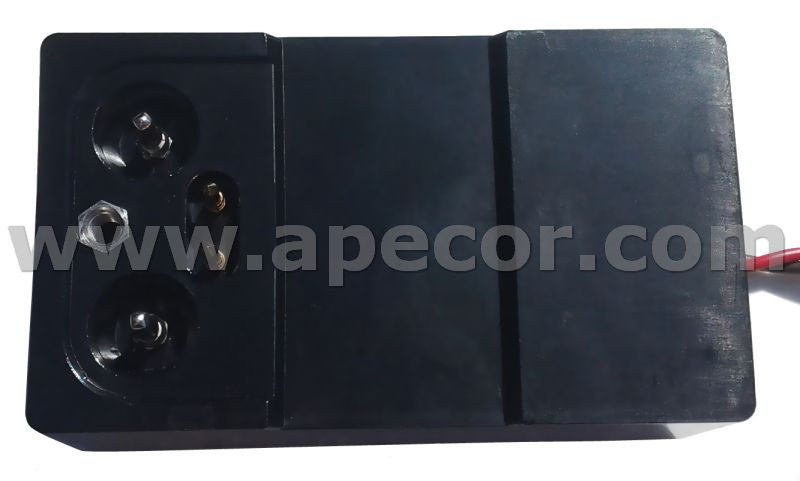

MA-4025 Solar Bottom View

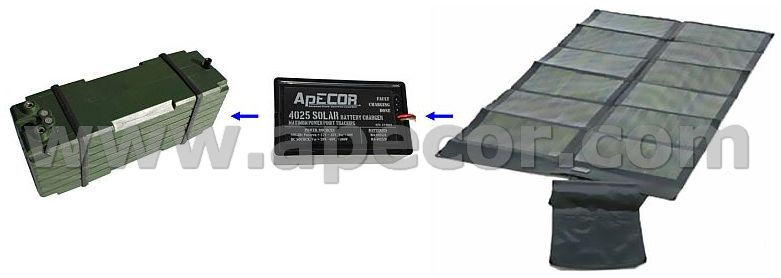

Setup 1: MA-4025 Solar with Ma-4025 battery and 1 solar panel

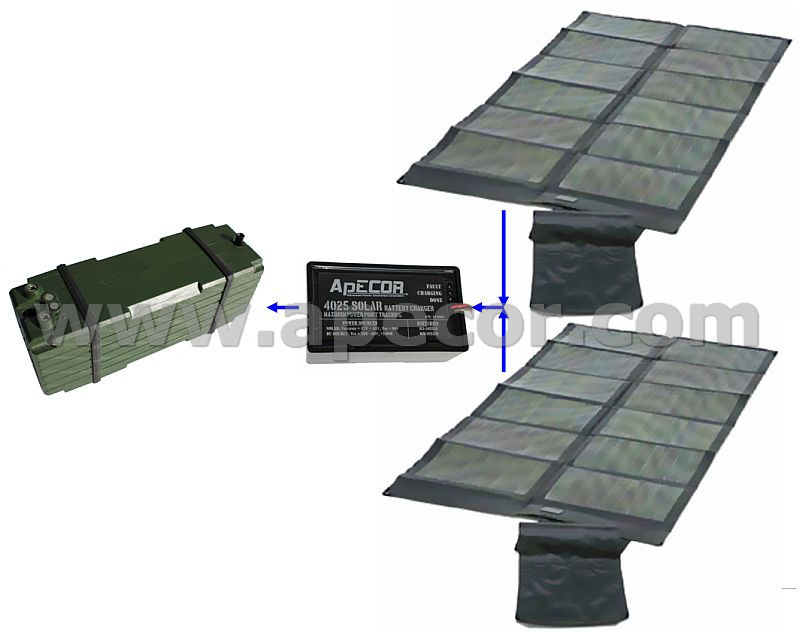

Setup 2: MA-4025 Solar with MA-4025 battery and 2 solar panels in parallel

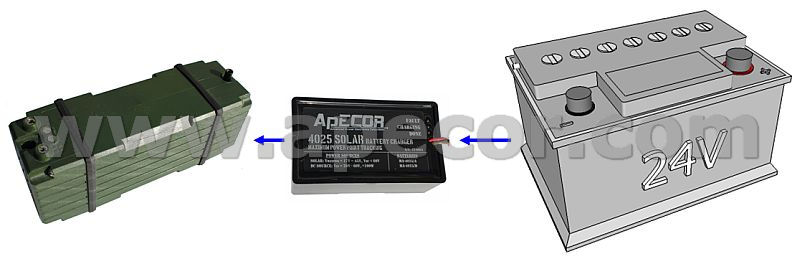

Setup 3: MA-4025 Solar with MA-4025 battery and 1 24V source battery

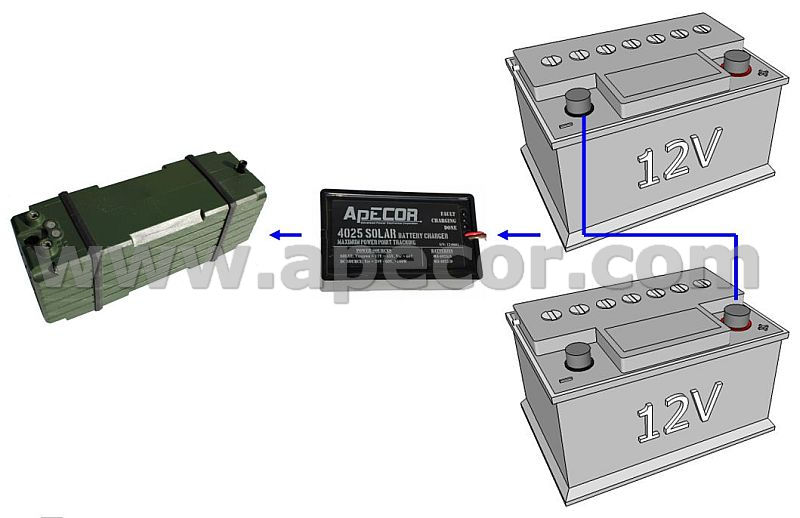

Setup 4: MA-4025 Solar with MA-4025 battery and 2 12V source batteries in series
Purchase
Please contact ApECOR with your request!
Related Documents
Supported Batteries
| Battery | Chemistry |
|---|---|
| MA-4025/A | NiCd |
| MA-4025/D | NiCd |
